|Place of Origin:||China|
|Minimum Order Quantity:||500 pcs|
|Packaging Details:||Each unit packed in a individual box|
|Delivery Time:||20 days and depends on ordering quantity|
|Payment Terms:||T/T, L/C|
|Supply Ability:||50000 pcs per month|
|Protection grade:||IP65||Warranty:||3 years|
Rotary Selector Switch,
Multi Position Selector Switch

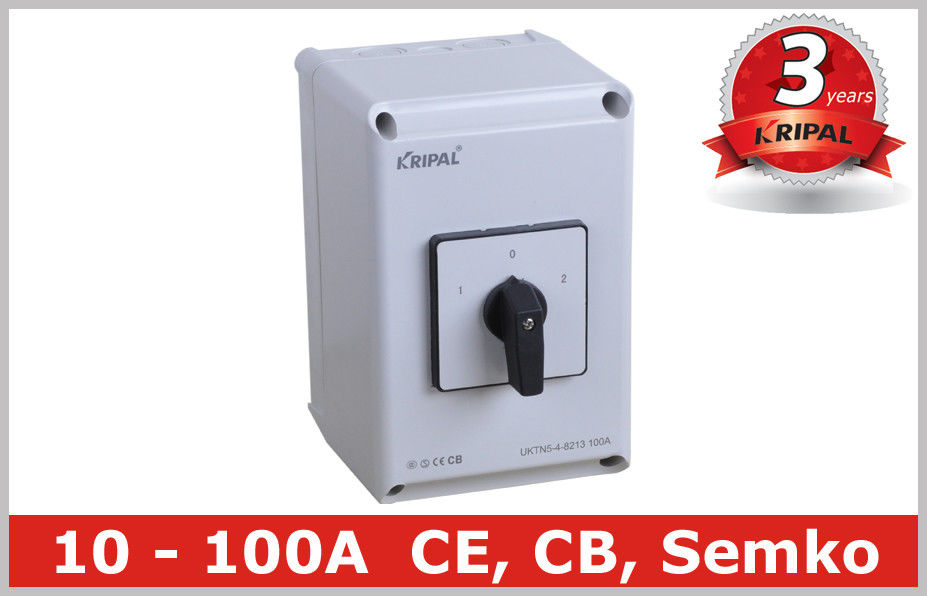

Manual Explosion Proof 2 Pole Selector Switch with PC Enclosured
KRIPAL has the DESIGN PATENT for UKT series switches,
Rotary Cam Switches from KRIPAL Electric are independently programmable, manually operated control switches for main and auxiliary circuits with up to 24 contacts and are offered with switching angles of 30°, 45°, 60° or 90°.
Therefore a maximum of 12 switching positions can be provided.
There are various kinds of control switch including transfer switch, star-delta switch, commutation switch, manual/auto switch, instrument transfer switch and so on.
1. Poles: 2P, 3P, 4P, 5P
2. Rated current: 10A, 16A, 20A, 32A, 40A, 63A, 80A, 100A
3. 30°, 45°, 60° or 90° switching angle
4. Forced open contacts
5. Finger protected
6. Fulfills the load break requirements up to 690 V and 1000 V
7. Terminal screws in open position
8. Red operation lever & yellow panel, pad lockable
9. Disconnect Switches offer ideal features for their use as: ON-OFF Switches, geover Switches, Multi-step Switches, Code Switches, Gang Switches, Instrument Switches and Motor switches
a. front mounting: four pole mounting; single hole mounting;
b. base mounting: Snap-on mounting (DIN rail 35mm)
c. Enclosed Switches: PC enclosure;
d. Our modular technology allows us to build custom switching solutions for up to 24 poles!
IP Ingress Introduction:
A two-digit number established by the International Electro Technical Commission, is used to provide an Ingress Protection rating to a piece of electronic equipment or to an enclosure for electronic equipment.
The two digits represent different forms of environmental influence:
• The first digit represents protection against ingress of solid objects.
• The second digit represents protection against ingress of liquids.
The larger the value of each digit, the greater the protection.
Protected against solid objects over 50mm e.g. hands, large tools.
Protected against vertically falling drops of water or condensation.
Protected against solid objects over 12.5mm e.g. hands, large tools.
Protected against falling drops of water, if the case is disposed up to 15 from vertical.
Protected against solid objects over 2.5mm e.g. wire, small tools.
Protected against sprays of water from any direction, even if the case is disposed up to 60from vertical.
Protected against solid objects over 1.0mm e.g. wires.
Protected against splash water from any direction.
Limited protection against dust ingress.
Protected against low pressure water jets from any direction. Limited ingress permitted.
Totally protected against dust ingress.
Protected against high pressure water jets from any direction. Limited ingress permitted.
We are a reliable partner for our customers and partners - and accurate and prompt in our deliveries.
Our clientele mainly consist of OEM industries: electrical and electronics industries and panel builders. Our store concept, developed for distributors and wholesalers, offers complete solutions for the end customer’s needs - such customers are contractors, installation technicians or industrial maintenance and service providers.
